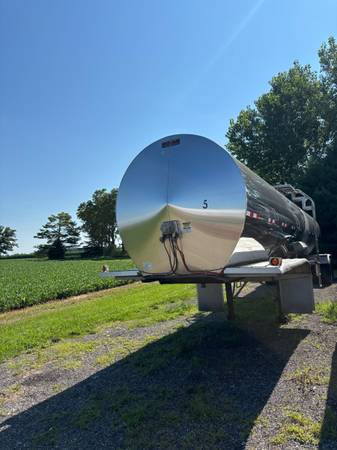

Polar Tank - $49,500
QR Code Link to This Post
Code: 3A Sanitary
Capacity: 6500 gallons (shell full)
Compartments: One
Shape: Round
Shell Material: T304 Stainless steel, #4, 12-gauge barrel, Two-piece barrel with one circumferential
weld.
Head Material: T304 Stainless steel #4 finish, 12 gauge
Operating Pressure: Atmospheric
Design Temperature 212 Degrees F. (TEMPERATURE RATING OF 212 DEGREE
F. WITH STANDARD INSULATION. THE USE OF OTHER
INSULATIONS MAY DECREASE THE MAXIMUM
TEMPERATURE RATING FOR THIS TRAILER. SEE
INSULATION FOR MAXIMUM TEMPERATURE RATING
CHANGE.)
Overall Length 42'-6"
Product: Various; to be compatible with the materials of construction.
Heat: None
Plumbing: None
Intransit: None
Weld finish: W-5 inside
Rings Stainless steel channel
Longerons Stainless steel channel
Frame Stainless steel, modified angle
* Dam: Non-insulated stainless steel spill dam with stainless steel drains through ladder rail
* Dam Drains: none
Overturn Protection None
Cleanout overturns None
Manhole Polar 18" stainless steel lid with dust cover, 4 hold-down.
Stainless steel sanitary deck around manhole.
Gasket: 3A black nitrile D50 gasket in cover
* Insulation: ¾ Polyurethane under 3” Polystyrene, R 18.5, 212 Deg F. max
Thermometer None
* Jacketing 22 gauge stainless steel bright finish
Jacket heads 18 gauge stainless steel #3 finish.
* Underlayment none
Static cable No static cables installed
Hose Carrier None
Carrier Location None
Lights 12-volt, Truck-Lite grommet mount Combination center marker / turn signals
Wiring Plug-in style harness system.
Rear Lights Enclosed in stainless steel light boxes
Nose box Standard 7 way, J560 receptacle with out circuit breakers.
Upper 5th Wheel 5/16" Heavy duty with A.A.R. style double hubbed kingpin.
Paint Fifth wheel plate painted black.
Landing Gear: Holland Atlas 55 2-speed
Frame Stainless steel construction
Bracing Stainless steel, with cross brace.
Crank location: Crank handle located on roadside
Tire carrier: None.
Suspension Hendrickson Intraax AANT23K,23,000 LBS tandem axle with standard 49"
axle spacing. 5 3/4" diameter Hendrickson integrated axles.
Dump valve: AKEM00005-1 manual (push / pull)
Hangers Stainless: Steel hangers with soft coat applied to axle and
trailing arm. (Weld-on suspension only)
Subframe: 3/16" stainless steel, with stainless steel fender supports.
Bumper Non-code, stainless steel tube, bumper / under ride protection, weld on
Beam Straight
Track 71-1/2" track
Spindle: P spindles (parallel) same inner and outer bearing
Wheel seals Stemco Guardian
Hub & drums: Walther EMC, hub-piloted, Dura-light Hub with Cast Drum.
Miscellaneous None
Brakes : S-cam 16 ½”x7”, Extended Service
Anti-lock / Roll stability: Meritor 4S/2M, Standard roll stability systems deleted, per customer request.
Brake chambers: TSE 3030
Brake lining: Extended service, non-asbestos
Slack adjusters : Haldex automatic
Valves Sealco
Gladhands: OEM Standard
Air system One aluminum tank system. D.O.T. specifications.
Wheels Alcoa Ultra One with clean buff finish, 22.5 x 8.25 aluminum.

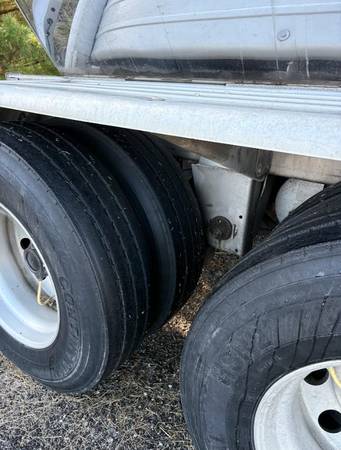

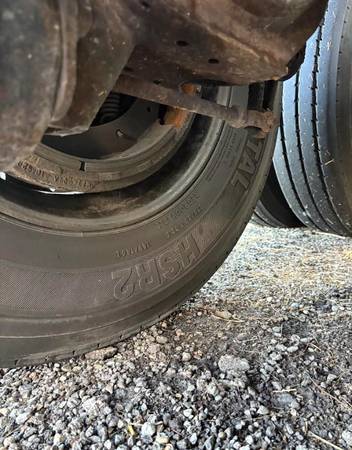

* Tires 295/75R-22.5 Cooper RM 120, Lo Profile, 14-ply. GHG2 Compliant
* Tire pressure system Hendrickson (Tiremaax "CP") tire inflation system
Front Aluminum, single contour, ribbed, front fender, each side.
Rear Aluminum, double contour, ribbed, rear fender, each side.
Mud flaps White, anti-sail and anti-spray with Polar logo, mounted front
and rear.
* Seal provisions Seal provisions on all openings

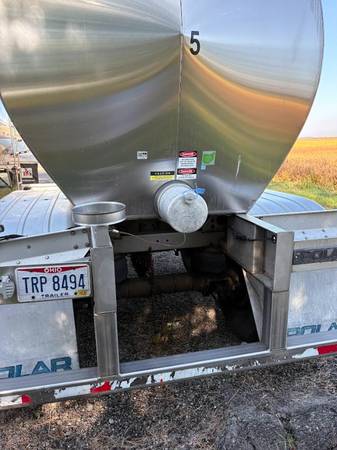

Sump 3" stainless steel sanitary drain with mounting ring in rear head.
Discharge location Rear of trailer.
Outlet valve 3" stainless steel 60TTF valve with aluminum dust cover,
attached to mounting ring.
Vacuum Run-O-Vent in manhole cover
Cleanouts: None
Top center None
* Curbside dam 12" aluminum four sides of dam
Ladder Two Stainless steel tubular with grip steps and dual large step,
bolt on.
Ladder Location One mounted curbside and roadside, near center of trailer
Cabinet None. No Cabinet installed.
Hydraulic Lines None
Meter None
Meter Installation None
Decals Standard warning and safety package.
Conspicuity Tape Discontinuous tape
Customer Logo None
Calibration Computer generated theoretical calibration chart, 1/4"
increments. Based on innage.
* Paint None. No paint installed on trailer.
Passivate None
Tests Standard testing.
Drawings None.
