GE TH3363R H-D Safety Switch 100 Amp 600 Vac, New - $125 (Etna)
condition:
new
make / manufacturer:
General Electric
model name / number:
TH3363R
size / dimensions:
22x11x9 (box)
QR Code Link to This Post

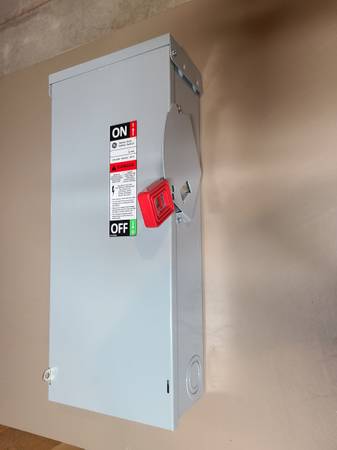

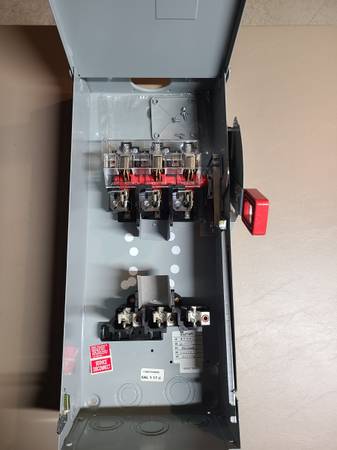

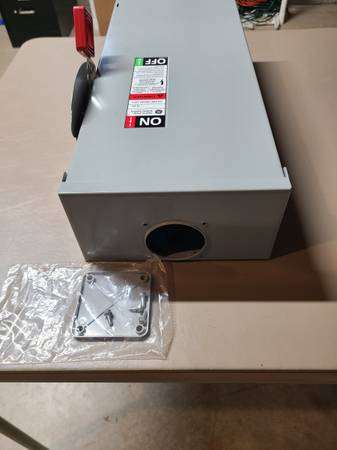

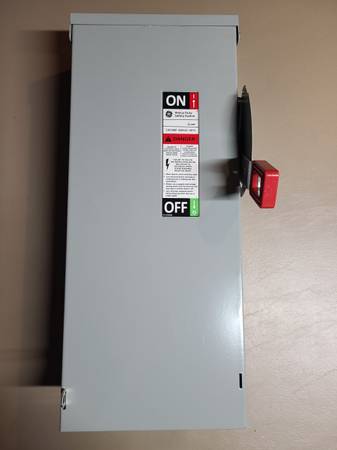

New, unused. Comes in open original Box.
Amperage Rating: 100 Amps
Voltage Rating: 600 VAC, 250 VDC
Poles: 3
Phase: 3
Enclosure Type: NEMA 3R (Rainproof)
Enclosure Material: Galvannealed Steel
Interrupting Rating: 200 kA at 600 V
Horsepower Ratings:
30 HP at 480 VAC (3-phase)
75 HP at 600 VAC (3-phase, Time Delay Fuse)
Fuse Compatibility: Class H, J, or R
Mounting Type: Surface Mount
Dimensions: 22.1" H x 9.3" W x 4.9" D
Weight: Approximately 19 lbs
Certifications: UL Listed, CSA Certified
Temperature Rating: 60/75°C conductor
Typical online pricing for a new unit like this is $450.00.
The General Electric TH3363R Heavy Duty Safety Switch is engineered to provide dependable overcurrent protection and a safe means of disconnect for electrical circuits in industrial and commercial environments. Its fusible design ensures protection against overloads and short circuits, while the 100 Amp rating and 600 VAC capacity make it suitable for a wide range of applications.
Constructed with a durable galvannealed steel enclosure, the TH3363R is designed for outdoor use and offers a compact footprint for easy installation. The switch features a quick-make, quick-break operating mechanism, ensuring reliable operation and enhanced safety during maintenance and servicing.
Whether you're upgrading existing equipment or installing new systems, the General Electric TH3363R Heavy Duty Safety Switch offers the reliability and performance needed to protect your electrical infrastructure.
