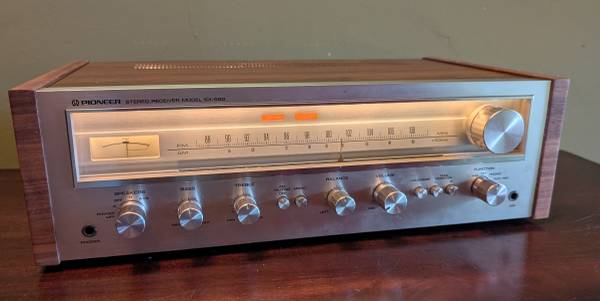

Pioneer SX-550 Stereo Receiver - $295 (Campus)
QR Code Link to This Post
Just got this one back from service where it was partially re-capped and a replacement power switch was installed. Now plug and play ready for another 40 years of service.

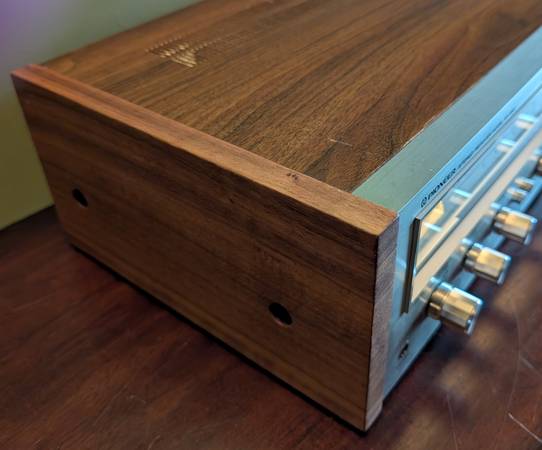

The faux vinyl wood grain on the side panels was peeling so I completely removed it and did both side panels in real walnut veneer and finished them with two coats of Odies Oil.
Specifications
Tuning range: FM, MW
Power output: 20 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 60kHz
Total harmonic distortion: 0.3%
Damping factor: 25
Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω (minimum)
Dimensions: 448 x 141 x 307mm
Weight: 9.4kg
Year: 1976
If the ads up, it's still available.
Can demo.
Feel free to email any questions.
